Bacillus anthracis & cereus

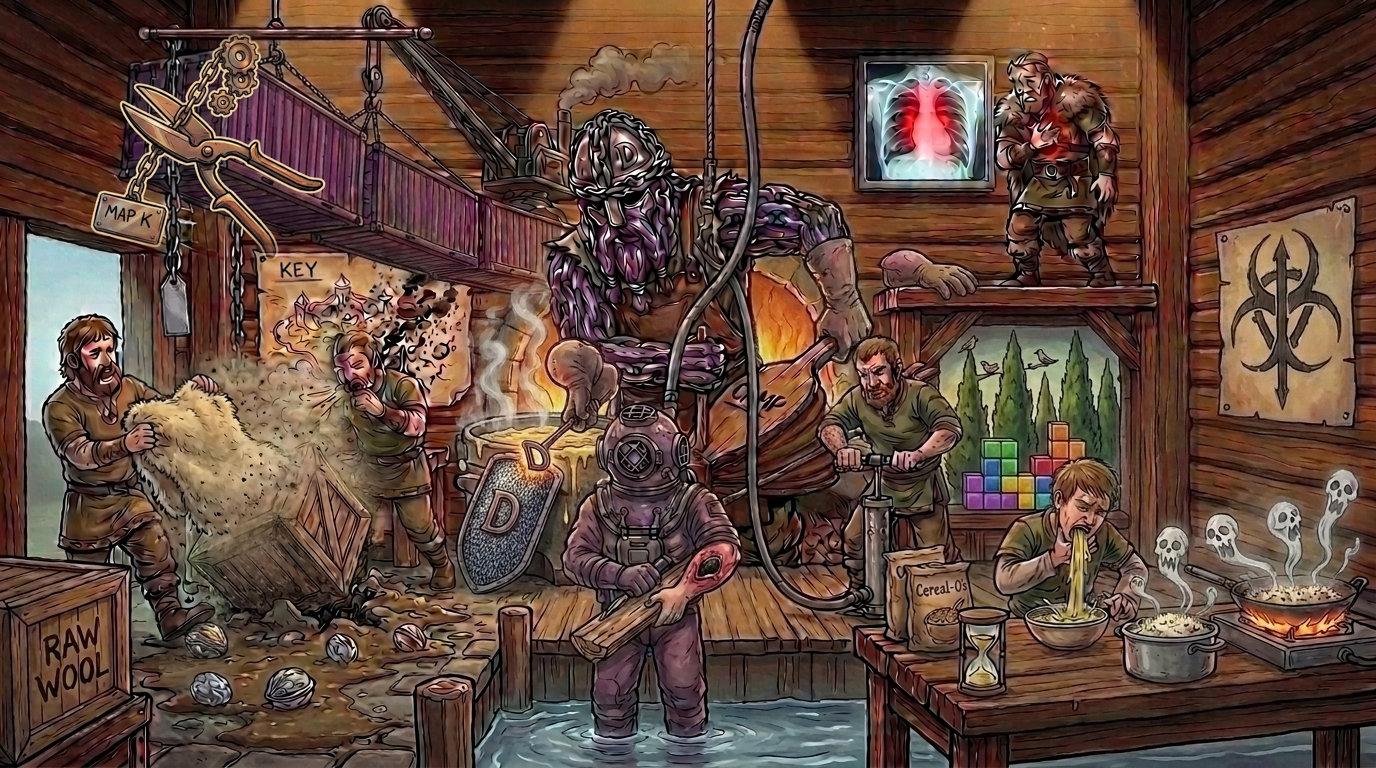

Bacillus species are large, Gram-positive (purple) bacilli (rods) that characteristically arrange themselves in long chains.

🔗 The panel flagged the previous 'chain-linked logs' for appearing too oval, risking confusion with cocci, and for copying a competitor's theme. The revision uses distinctly rectangular shipping containers to clearly depict bacilli (rods). The new shipping dock theme is original and avoids the competitor's Viking motif, while still providing a strong visual for 'large, Gram-positive rods in chains'.

Bacillus anthracis and Bacillus cereus are obligate aerobes, meaning they require oxygen to survive and grow.

🔗 The panel flagged the previous 'bellows' visual as a common mnemonic cliché that also copied a competitor's theme, and criticized its unnecessary text label. The revised depiction of a deep-sea diver entirely dependent on a single air pump is a more original and powerful visual for an absolute oxygen requirement, and it removes the text label as requested.

Bacillus species are spore-forming bacteria found in the soil. These spores are highly resilient and can survive harsh environmental conditions for long periods.

🔗 The panel flagged the original visual for being visually identical to the transmission symbol and for incorrectly suggesting that spores originate from animal hides rather than soil. The revision resolves this by creating a distinct scene focused on the key concepts: soil as the reservoir and extreme resilience. The uncrackable walnut in the soil is now completely separate from the animal hide transmission vector.

Pulmonary anthrax, also known as Woolsorter's disease, is contracted by inhaling aerosolized spores from contaminated animal products like wool or hides.

🔗 The panel flagged the original visual because it was indistinguishable from the spore formation symbol. By revising the spore formation symbol to focus on soil and resilience, this depiction of transmission via animal products becomes unique and unambiguous. This visual is an established and effective mnemonic for Woolsorter's disease, and is now clearly differentiated from any other symbol in the scene.

Bacillus anthracis is the only bacterium with a polypeptide capsule, which is composed of D-glutamate (poly-D-glutamic acid) and protects it from phagocytosis.

🔗 original

The Edema Factor (EF) exotoxin acts as an adenylate cyclase, increasing intracellular cAMP levels. This leads to fluid secretion and tissue edema, characteristic of anthrax lesions.

🔗 original

The Lethal Factor (LF) exotoxin is a protease that cleaves and inactivates MAP kinase (MAPK). This disrupts cell signaling, leading to macrophage apoptosis and tissue necrosis.

🔗 original

Cutaneous anthrax presents as a painless ulcer that progresses to a characteristic black eschar (a necrotic, coal-black lesion) surrounded by significant edema.

🔗 original

Pulmonary anthrax begins with non-specific flu-like symptoms but rapidly progresses. Chest X-ray characteristically shows a widened mediastinum due to hemorrhagic mediastinitis.

🔗 To avoid copying established themes and improve visual integration, the widened mediastinum is depicted through a dramatic silhouette effect caused by a furnace, a natural part of the new 'woolsorter's workshop' setting. This replaces the generic Viking theme and the less cohesive 'magic X-ray window'.

First-line treatment for Bacillus anthracis infection includes fluoroquinolones (like ciprofloxacin) or tetracyclines (like doxycycline).

🔗 To correct the implication of combination therapy and avoid clichéd symbols, the treatments are presented as alternatives separated by a clear 'OR'. The generic flower and bicycle are replaced with original, mechanism-based symbols: cypress-leaf birds jamming a DNA gyrase top for fluoroquinolones, and Tetris blocks jamming a ribosome for tetracyclines.

Bacillus cereus food poisoning (emetic type) is classically associated with reheated fried rice. It causes rapid-onset vomiting (1-5 hours) due to a preformed, heat-stable enterotoxin (cereulide).

🔗 To prevent confusion with anthrax and clarify the toxin's nature, B. cereus is depicted with a distinct 'cereal-us' character in a separate part of the scene. The unclear 'heat-proof steam' is replaced by a clear visual of ghostly toxin-skulls passing unscathed through reheating flames, demonstrating they are pre-formed and heat-stable.
